The Merge node in Join All mode recombines multiple execution paths into a single output by collecting all input values into a list. Use it after a Condition or AI Routing node to gather results from every branch that executed — for example, combining extracted data from parallel document processing paths into one consolidated list, or aggregating results from multiple API calls before passing them to a summary step.

​
Core Functionality

  • Collects values from multiple input fields and joins them into a single list output
  • Designed to recombine paths created by Condition or AI Routing nodes
  • Supports configurable input/output types (Text, Integer, Decimal, File, JSON, and more)
  • Allows adding or removing input fields dynamically
  • Outputs a list (vector) of the configured type

​
Tool Inputs

  • Function — The merge strategy. Set to Join All to collect all inputs into a list. Dropdown.
  • Type — The expected data type of the input and output fields. Dropdown with options: Text, List of Text, Integer, Any, Decimal, Boolean, File, Audio, Image, JSON, Timestamp, Path, List of Files, Knowledge Base. Default: Text.
  • Input 1 — The first input value. Connect from an upstream node or enter directly. Type matches the selected Type.
  • Input 2 — The second input value. Same as above.
  • Additional inputs can be added with + Add Field.

​
Tool Outputs

  • output — A list (vector) of the configured type containing all input values. For example, if Type is Text and you provide three text inputs, the output is a list of three text strings.

​
Overview

In workflows, the Merge node in Join All mode sits downstream of branching nodes (Condition, AI Routing) to recombine their outputs. It collects values from all connected input fields into a single list, which you can then pass to downstream nodes for aggregation, summarization, or further processing. Use it when every branch produces a result and you need all of them together.

​
Use Cases

  • Aggregate extracted financial metrics from parallel document processing branches into a single list for reporting
  • Combine API responses from multiple provider calls into one consolidated result set
  • Collect validation results from separate rule-checking branches into a summary list
  • Gather translated text outputs from parallel language-specific branches
  • Merge compliance check results from multiple regulatory paths into one review list

​
How It Works

​
Step 1: Add the Merge Node

In the workflow canvas, click the Logic tab in the node palette and click Merge. Drag it onto the canvas.

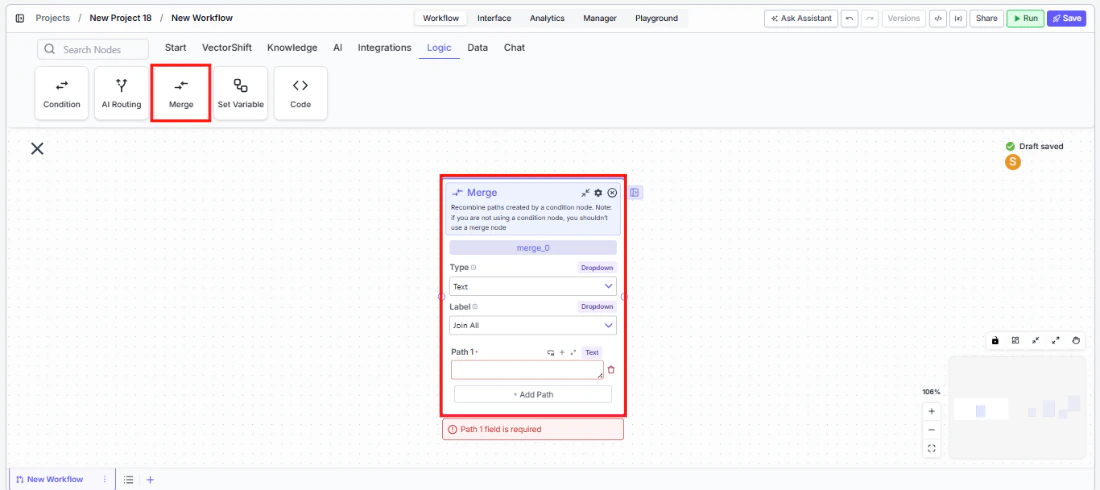

Workflow node palette showing the Logic tab with Merge option

​
Step 2: Set the Function to Join All

In the Merge node, set the Function dropdown to Join All. This configures the node to collect all inputs into a list.

​
Step 3: Configure the Type

Select the expected data type from the Type dropdown. This determines what kind of data the input fields accept and what the output list contains. For example, select Text for text values or JSON for structured data.

​
Step 4: Connect Input Fields

The node starts with two input fields (Input 1 and Input 2). Connect each to an upstream node’s output — typically from different branches of a Condition or AI Routing node.Click + Add Field to add more input fields as needed. Each new field gets a connection handle on the left.

​
Step 5: Connect the Output

The output handle on the right side of the node produces a list containing all input values. Connect it to downstream nodes for further processing.

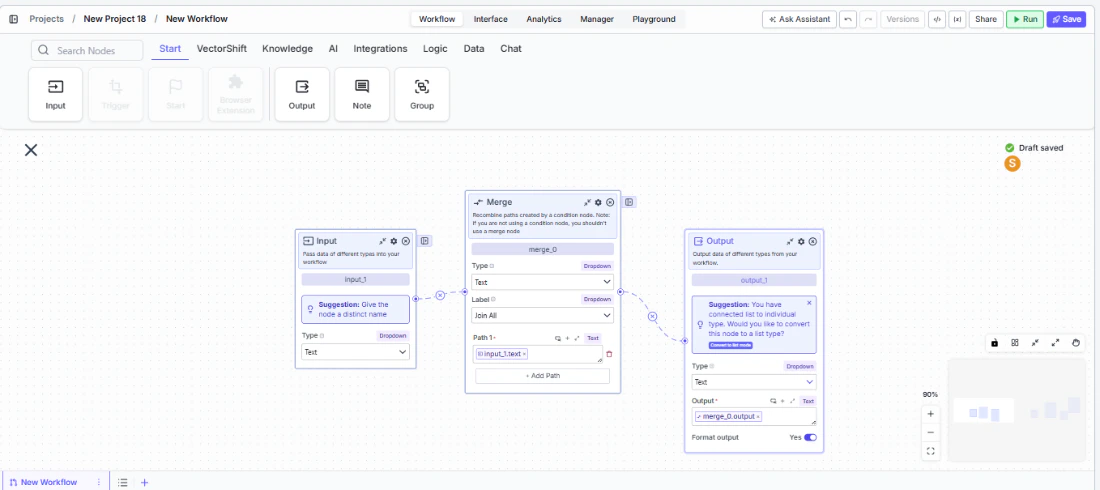

Merge Join All node connected to input and output nodes

​
Step 6: Test the Workflow

Click Run to test. The Merge node collects all non-empty input values into a list and passes them downstream.

​
Settings

SettingTypeDefaultDescription
FunctionDropdownJoin AllThe merge strategy. Set to Join All to combine all inputs into a list.
TypeDropdownTextThe data type of input fields and output list. Options: Text, List of Text, Integer, Any, Decimal, Boolean, File, Audio, Image, JSON, Timestamp, Path, List of Files, Knowledge Base.
Input 1Configured type—First input value. Connect from upstream.
Input 2Configured type—Second input value. Connect from upstream.
+ Add FieldButton—Adds additional input fields.

​
Best Practices

  • Match the Type to your data. Set the Type dropdown to match what your upstream branches produce. A mismatch can cause type errors at runtime.
  • Use after Condition nodes for aggregation. Place the Merge (Join All) node downstream of a Condition node when you need to collect results from all branches — for example, gathering validation results from multiple checks.
  • Add only the fields you need. Each input field should correspond to one branch or upstream output. Remove unused fields to keep the canvas clean.
  • Chain with a Join List Items node. If you need the output as a single concatenated string instead of a list, connect the Merge output to a Join List Items node downstream.
  • Handle empty inputs gracefully. If a branch doesn’t execute (because its condition wasn’t met), its input to the Merge node may be empty. Plan for this in downstream processing.

Spreadsheet Comparison Assistant

Compares two or more spreadsheets to identify discrepancies, changes, and anomalies.

Document Comparison AI Agent

Side-by-side comparison of documents to highlight differences and track revisions.

Validation Agent

Validates data and documents against predefined rules, schemas, or compliance standards.

Financial Statement Reconciliation Assistant

Reconciles financial statements by identifying mismatches and resolving discrepancies.

​
Common Issues

For help with common configuration issues, see the Common Issues page.
