AI Operations
Extract Data Node
Extract key pieces of information from a text input

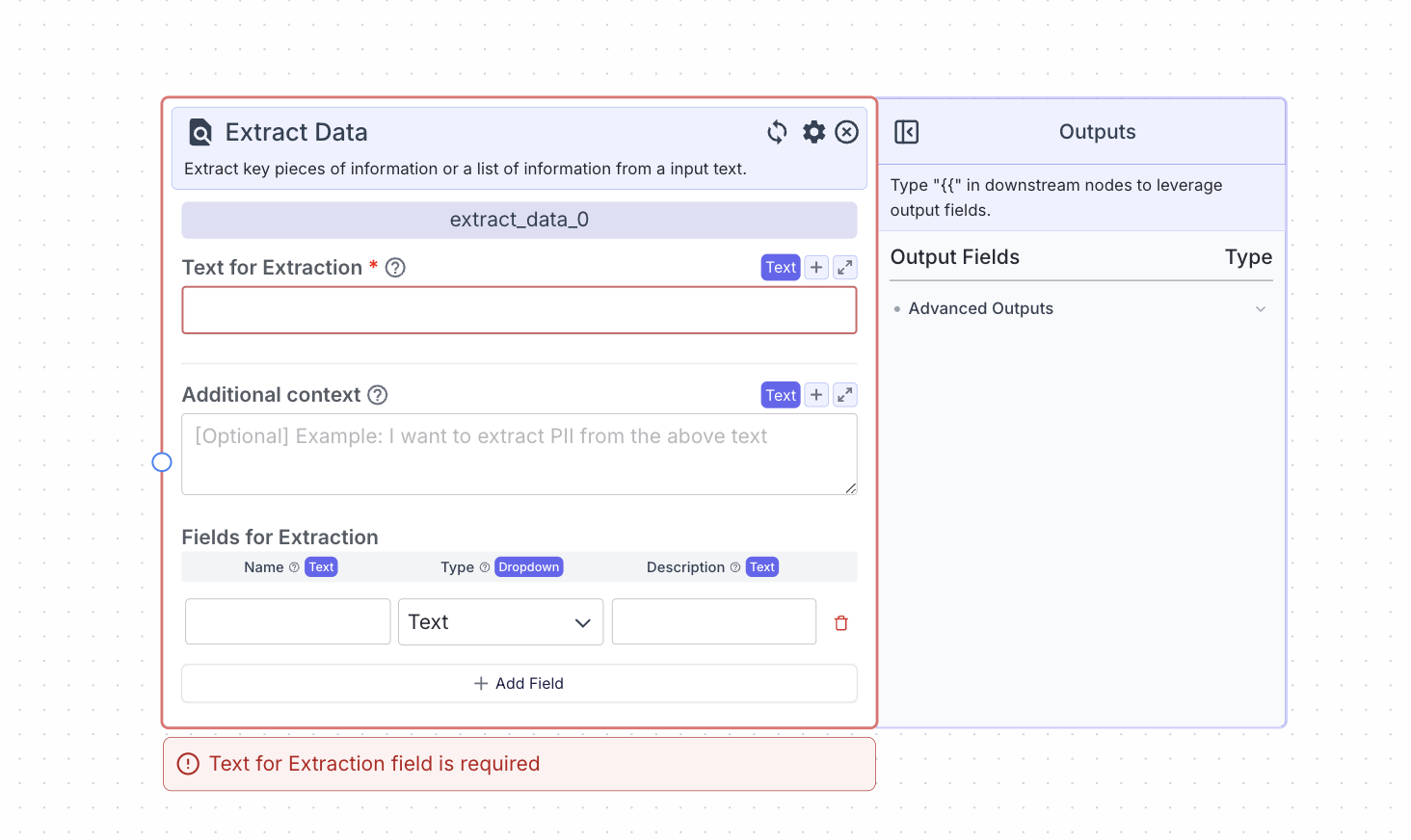

This node allows you to extract key pieces of information or list of information from the input text using AI.
Node Inputs
- Text for Extraction: The text that will be extracted from
- Type:
Text
- Type:
- Additional Context: Additional information or instructions for the AI
- Type:
Text(based on the type of list you choose)
- Type:
- Fields For Extraction: The fields to be extracted. Each field has three inputs:
- Name: The name of the field to extract
- Type:
Text
- Type:
- Type: The type of the data to extract. The types are:
Text,Decimal,Boolean,List<Text>,List<Decimal>, andList<Boolean>- Type:
Dropdown
- Type:
- Description: A description of the data to extract
- Type:
Text
- Type:
- Name: The name of the field to extract
Node Parameters
In the gear:- Provider: Provider of the AI model you want to use. The default provider is OpenAI.
- Model: Model name of the AI model you want to use. The default model is gpt-4o.
Node Outputs
Dynamic Outputs: All the fields for extraction will be treated as individual outputs with the types as defined.Considerations
- Click Add Field to add more fields.
- Be specific in your data descriptions for accurate outputs.
- To extract a list of text, set the type to
List<Text>.
Example

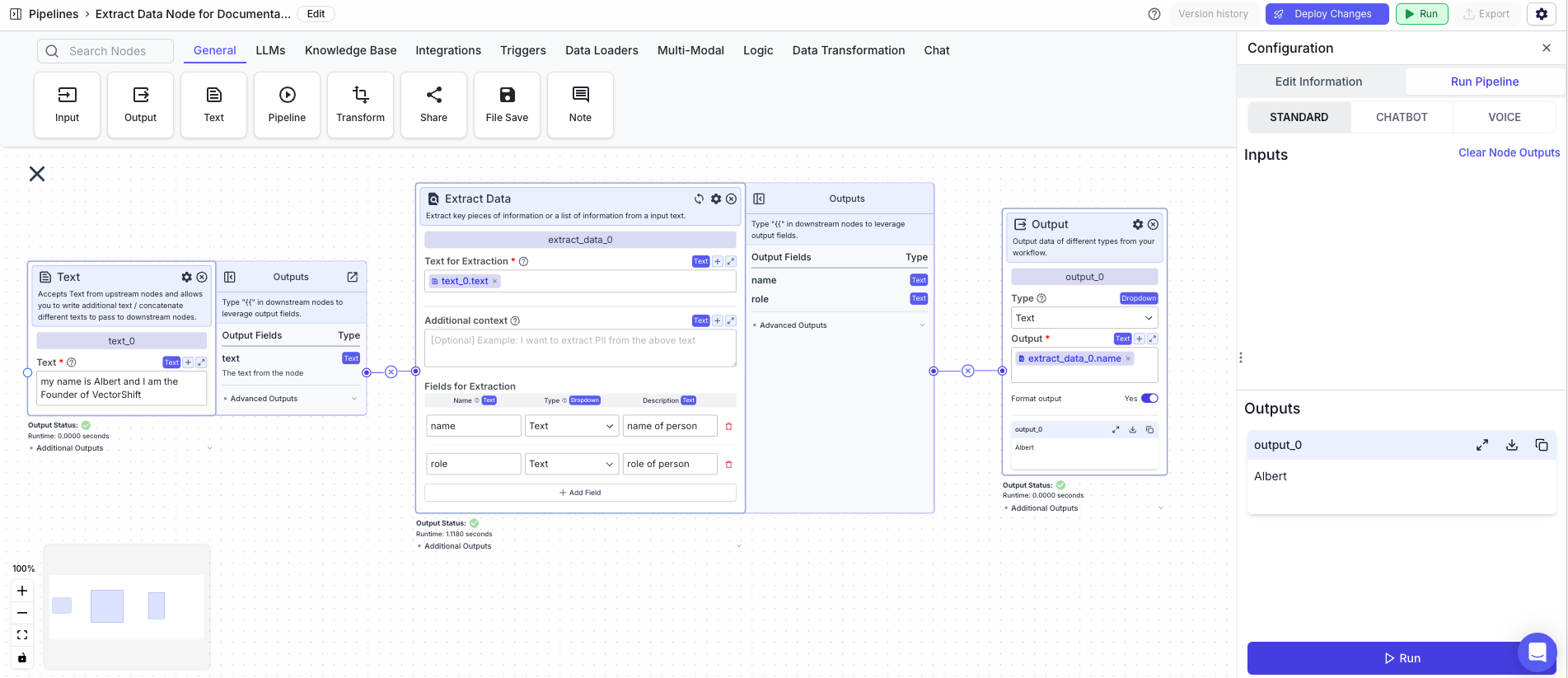

The below example is a pipeline which extracts personal details such as name and address from a given text.- Text Node: The text for extraction
- Extract Data Node: Provide the text and specify the fields for data extraction.
- Text for extraction:
{{text_0.text}}
- Text for extraction:
- Output Node: Display the extracted field from the Extract Data Node.
- Output:
{{extract_data_0.name}}
- Output:
