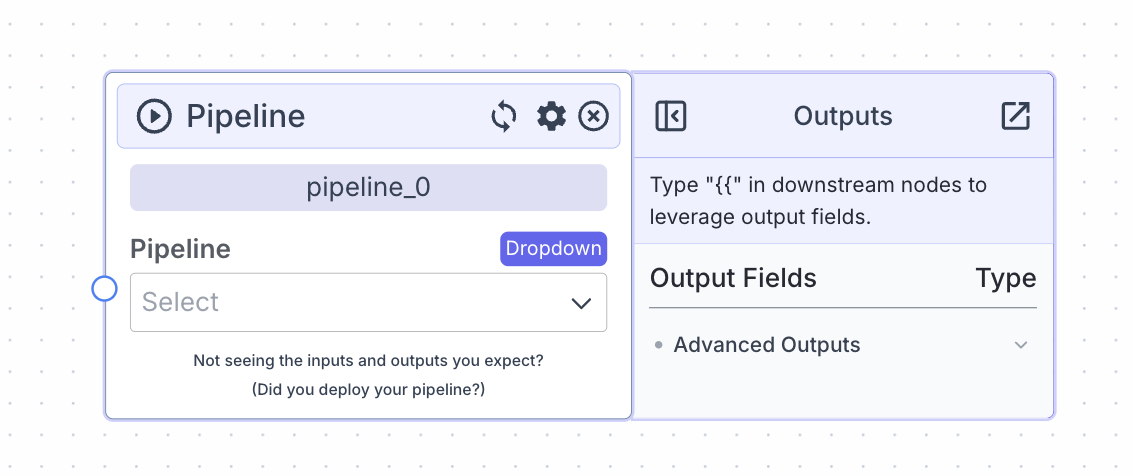

Pipeline The pipeline node allows you to run other pipelines within your current pipeline. Use a pipeline node when you want to execute an abstracted workflow (sub-pipeline) as part of your current pipeline.

​
Node Inputs

  1. Pipeline: Select the sub-pipeline to run within your current workflow
  2. Pipeline-specific inputs: The inputs corresponding to all input nodes within your selected sub-pipeline
    • Type: Varies based on input nodes in sub-pipeline
The pipeline node uses the most recent deployed version of your sub-pipeline. Ensure that your sub-pipeline is deployed before using it in the pipeline node.

​
Node Outputs

  1. Pipeline specific outputs: Outputs corresponding to the output nodes for your selected sub-pipeline
    • Type: Varies based on output nodes in sub-pipeline
    • Example usage: {{pipeline_0.[output_name]}}

​
Considerations

  • Use a pipeline node to execute separately created workflows within your current pipeline. It is especially useful to abstract out complex logic when dealing with large/complex workflows.
  • The pipeline node makes the outputs of the sub-pipeline available to use in your current workflow.
  • All input nodes in your sub-pipeline will appear as input fields on the pipeline node.

​
Example

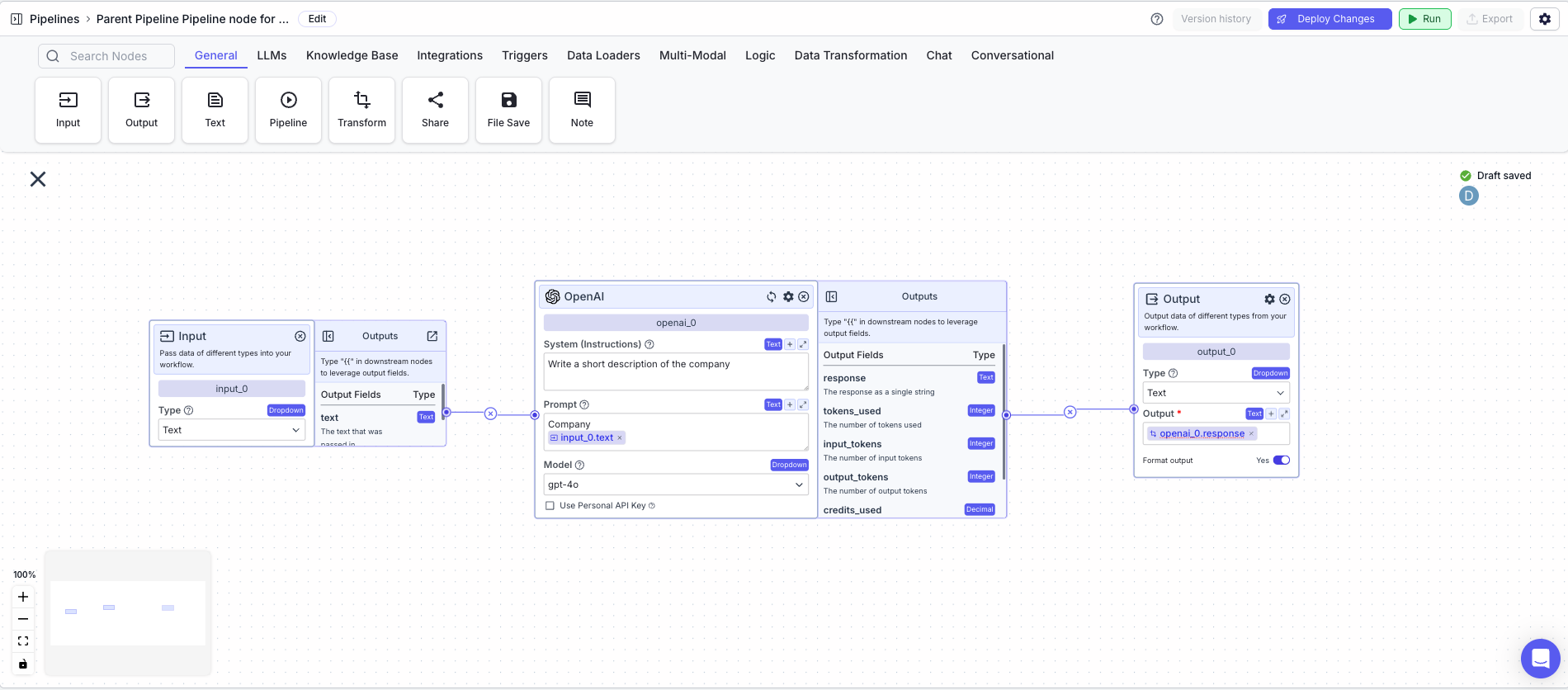

The below example shows a “Parent Pipeline” calling a sub-pipeline, “Company sub-pipeline”. The sub-pipeline takes in the name of a company, and outputs a short description of the company.

Parent Pipeline
  1. Input Node: Allows for the name of a company to be inputted into the pipeline.
  2. Pipeline Node: Calls the sub-pipeline
    • Pipeline: Company Sub Pipeline
  3. Output Node: Display the output of the sub-pipeline
    • Output: {{pipeline_0.output_0}}
Parent Pipeline Sub-Pipeline Sub-Pipeline Parent Pipeline
